Label 端口

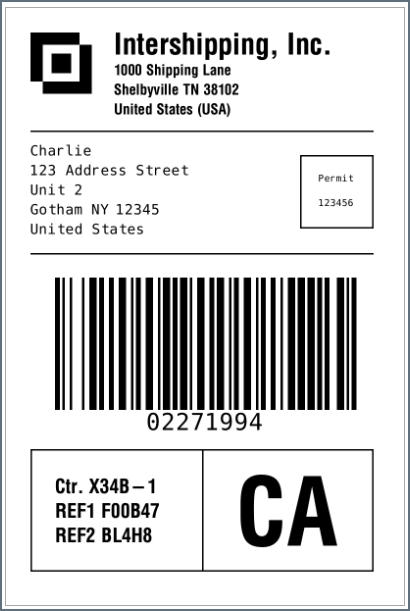

^XA
^FX Top section with logo, name and address.
^CF0,60
^FO50,50^GB100,100,100^FS
^FO75,75^FR^GB100,100,100^FS
^FO93,93^GB40,40,40^FS
^FO220,50^FDIntershipping, Inc.^FS
^CF0,30
^FO220,115^FD1000 Shipping Lane^FS
^FO220,155^FDShelbyville TN 38102^FS
^FO220,195^FDUnited States (USA)^FS
^FO50,250^GB700,3,3^FS
^FX Second section with recipient address and permit information.
^CFA,30

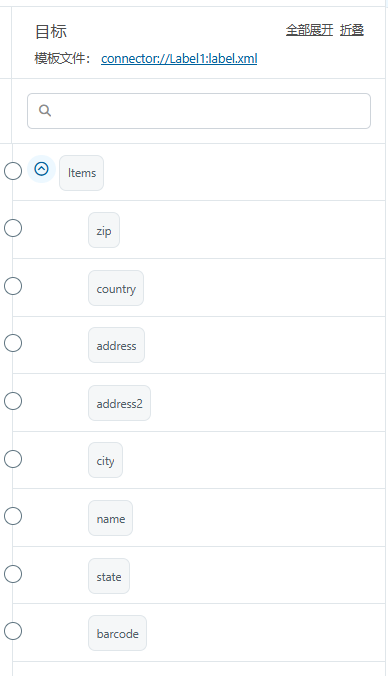

^FO50,280^FD${name}^FS
^FO50,320^FD${address}^FS
^FO50,360^FD${address2}^FS
^FO50,400^FD${city}^FS
^FO175,400^FD${state}^FS
^FO225,400^FD${zip}^FS
^FO50,440^FD${country}^FS
^CFA,15
^FO600,300^GB150,150,3^FS
^FO638,340^FDPermit^FS
^FO638,390^FD123456^FS
^FO50,500^GB700,3,3^FS
^FX Third section with barcode.
^BY5,2,270
^FO100,550^BC^FD${barcode}^FS
^FX Fourth section (the two boxes on the bottom).
^FO50,900^GB700,250,3^FS
^FO400,900^GB3,250,3^FS
^CF0,40
^FO100,960^FDCtr. X34B-1^FS
^FO100,1010^FDREF1 F00B47^FS
^FO100,1060^FDREF2 BL4H8^FS
^CF0,190
^FO470,955^FDCA^FS
^XZ

^FO50,280^FDCharlie^FS
^FO50,320^FD123 Address Street^FS
^FO50,360^FDUnit 2^FS
^FO50,400^FDGotham^FS
^FO175,400^FDNY^FS
^FO225,400^FD12345^FS
^FO50,440^FDUnited States^FS
...
^FO100,550^BC^FD02271994^FS
